| Input Voltage Range | VAC | 100-240Vac 50/60Hz |
| Output Voltage&Current(Max) | A | 14VDC 2.0A |
| Power Factor | - | Meets EN61000-3-2 |
| Temperature Coefficient | ℃ | ±0.05%/℃ |
| Voltage Accuracy | % | ±2% |
| Ripple & Noise | mV | <120mV |
| Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
| Efficiency at Average Load | - | 88% min |
| Operation Temperature | - | 0 to +60℃, derating linearly to 50% load above 40℃ |
| Storage Temperature | - | -10 to +85℃ |
| Humidity (non condensing) | - | 10-90% RH |
| Withstand Voltage | - | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
| Safety Agency Certifications | - | UL62368,UL60950-1, EN609501-1, IEC60950-1, CE Mark |
| Application | - | LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair, laptop, vending machine, water purifier, etc. |
| Conducted & Radiated EMI | - | EN55023-B, FCC Class B |
| Immunity | - | EN55024 |
| Dimension | mm | 90*42*31mm |
| Output Connector | mm | 5.5*2.1mm 5.5*2.5mm 2Pin 3Pin 4Pin 5pin Molex,etc (optional) |
Efficiency Level: DOE VI CEC VI
3 Years Warranty
MTBF>200000hours

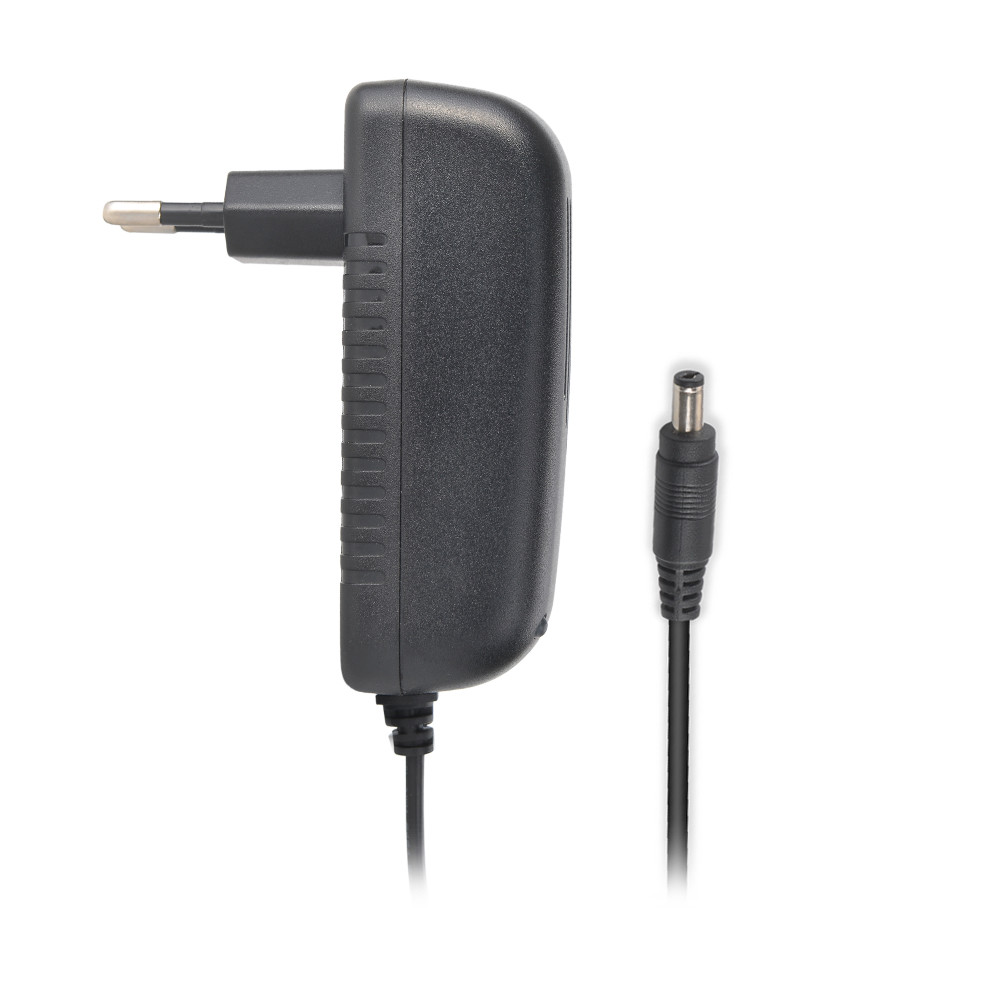

| 14V Series AC/DC adapter |
| MODEL | Output voltage | Output current | Max power |
| YHY-14001000 | 14VDC | 1.0A | 14Watts |
| YHY-14001500 | 14VDC | 1.5A | 21Watts |
| YHY-14002000 | 14VDC | 2.0A | 28Watts |
| YHY-14002500 | 14VDC | 2.5A | 45Watts |
| YHY-14003000 | 14VDC | 3.0A | 52Watts |
| YHY-14003500 | 14VDC | 3.5A | 59Watts |
| YHY-14004000 | 14VDC | 4.0A | 66Watts |
| YHY-14005000 | 14VDC | 5.0A | 70Watts |
| YHY-14006000 | 14VDC | 6.0A | 84Watts |
1.Q: Do you offer samples for testing?
A: Yes,we offer samples for testing with cost paid by buyer.Besides we welcome our customers to take sample as we believe seeing is believing.
2.Q: What's your MOQ?
A:we have no moq if stocked and 2000pcs if OEM order.
3.Q:Do you have warranty?
A :Yes,we have warranty of 3 year period.
4.Q:Do you have certificates for your products?
A:Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV GS,PSE,KCC,NOM Certifications.
5. Can you design the new housing based on our design?
A: We can design. one week make up sample. 30days sample test 45days start to MP?
6. What's the main product of you factory?
A: We are the supplier for 0-500W global power adapter, including wall plug adapter,usb adapter/charger,desktop adapter, metal case switching power supply,led power supply, waterproof power supply,led driver,open frame power supply and ect.
7. Do you have some new product coming?
A: We will design more and more new product with differenct high quality.
8.Q: What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking, Paypal and Western Union.
Key Market Segments & Applications:
We have DC 5-36V AND, 0.1A-10A, 3W-120W adapters.Lead Trend IC,YHY uses world famous brand IC from leadtrend who is an industry leader,Applied to LED, LCD, guitar, Voice robot, POS machine, printer, toy car, Smart home, loudspeaker, Battery, massager, wireless microphone, LED Showcase, toy plane, massager, laptop etc.
